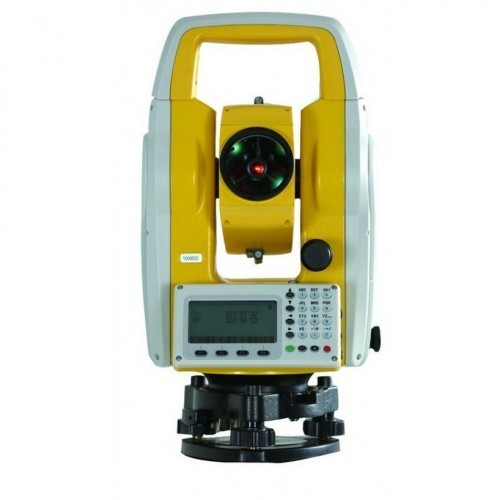

DESKRIPSI TOTAL STATION HI TARGET ZTS 320R
Spesifikasi dan Harga Total Station Hi Target Zts 320R
Specifications
Angle Measurement
Measurement Method : Absolute Encoding
Minimum Readout : 1"/5"/10"(0.3Mgon/1.5Mgon/3Mgon),
AdjustableAccuracy2"
Distance Measurement(With Reflector) : Single Prism 3000M (9,842Ft) Under Good Condition
Three Prisms 6000M (19,685Ft) Under Good Condition
Reflective Area 800M (2,624Ft)
Accuracy : 2 Mm+2Ppm
Measuring Time : (Fine/Quick/Tracking)0.5S/1S/1.5S
Distance Measurement (Without Reflector) : Range350M (1,148Ft)
Single Prism>7500M (24,606Ft)
Accuracy : 3Mm+2Ppm
Measuring Time1.5S
Telescope
Magnification : 30
Field Of View : 130' (2.7M At 100M)
Minimum Focusing Distance : 1.5M
Reticle Illuminated
Compensator System : Single-Axis Liquid Tilt Sensor/Dual-Axis (Optional)
Working Range : 3'
Setting Accuracy : 1"
Communication : Bluetooth Interface, Standard Rs232, Sd Card, Usb Pen Drive, Mini-B
Internal Data Memory
Approx. 20,000 Points
Data Format : Ascii Operation
Operation System : Real-Time Operating System
Display
High Resolution Backlight, Black And White Display With Contrast Adjustment
Graphics19296 Pixels/Character: 6 Lines25 Characters
Keyboard : 2 Sides Alphanumeric Backlit Crystal Keyboard
Laser Plummet Type Laser Point, 4 Brightness Levels Adjustment/Optical Plummet (Optional)
Centering Accuracy : 1 Mm (1.5M Height Of Instrument)
Power Supply
Battery Type : Rechargeable Li-Ion
BatteryVoltage/Capacity : Zba-400: 7.4V (Dc)/3000Mah
Operating Time With Zba-400 : Optimal 16 Hours(Continuous Angle Measurement Every 30 Seconds)/10 Hours (Typical)
Measuring Times :Approx. 12000
TimesWeight(Including Battery And Tribrach) : Approx. 5.5Kg (12.1Lb)
Environmental Conditions
Lengkap 1 SET diantaranya :
2x Tripod Alumunium
1x Prisma Single
1x Prisma Polygon
1x Pole Stick
Bergaransi Resmi 1 Tahun, Bersertifikat, Gratis Training Di Kantor Kami.
UNTUK HARGA KAMI AKAN BERIKAN MELALUI PENAWARAN DENGAN HARGA TERBARU DAN HARGA TERBAIK.
Silahkan Hubungi Kami Via Email / Telp Kami Siap Membantu Keperluan Anda :
T. (021) 53158019/21
M. 081220316619
BB. 58376F96
E. rizkyindosurta@gmail.com
